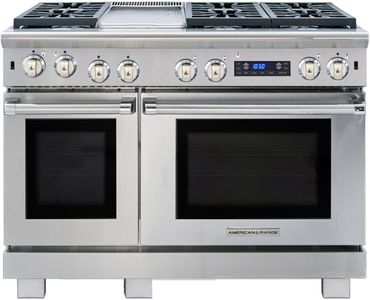

    American Range Medallion Series 48" Stainless Steel Pro Style Gas Range


    Model #:

    ARR-486GDDF-N

    Model #: ARR-486GDDF-N
    692199
    American Range
    $12,729.00

    At a Glance

    Product Dimensions 40.5"h x 47.88"w x 29.94"d

    Balanced turbulent heat distribution is essential when baking, roasting, and dehydrating food. The American Range convection oven technology features a convection motor and louvered side panels to enhance uniform heat distribution throughout the large oven cavity.Read More

    $12,729.00

    What We Offer

    Services
    None Selected
    You Might Also Need
    None Selected

    Get to know this product.

    Product Overview

    Product Overview

    11" 20,000 BTU griddle.

    Sealed burners deliver exceptional performance at every level setting and lift off to provide easy clean-up.

    3 sizes of burners to serve your everyday needs: 17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm).

    Variable infinite flame settings for all sealed top burners.

    Fail-safe system ensures re-ignition in the event the flame goes out.

    Continuous and flush commercial-grade cast iron grates allow for easy transfer of pots and pans across the entire cooking surface.

    Blue LED lights indicate flame and oven functions provided with every knob.

    Heavy metal die-cast black satin knobs with chrome bezels.

    Sealed Single Piece tooled stainless steel cook top can hold a gallon of spills.

    Electronic keypad with blue VFD display.

    Multiple functions include: Full Power modes for Standard Bake, Convection Bake, Infrared Broil, or Warm modes for Dehydrate, Crisping and Proofing.

    Traditional and Convection Bake can be controlled from 150°F to 550°F.

    Infrared energy from hidden bake and broil elements shine through high transparency glass ceramic windows.

    3,500 Watt Instagrill broiler reaches searing temperature in 3 seconds.

    Stainless steel air flow directors provide even distribution of convection air for uniform oven temperatures.

    Commercial grade high performance thermal insulation keeps kitchen cool.

    Two chrome racks glide at 5 (including base) cooking levels on heavy chrome side supports.

    Accommodates full size commercial sheet pan.

    Commercial grade porcelainized oven interior for simple cleaning.

    Programmable timed self clean for effortless oven maintenance.

    Useful Documents
    Specifications

    General Specs

    ColorStainless Steel
    Air FryNo
    Cooktop FeaturesContinuous Grate, Griddle Included, Hot Surface Indicator Light, Digital Display, Sealed Burners
    Cooktop Surface StyleGrate
    Door Panel TypeGlass
    Appliance Fit Width (in.)48
    Grate MaterialCast Iron
    Total Capacity (cu. ft.)7.4
    Color Finish NameStainless Steel
    CollectionMedallion Series
    ADA CompliantNo
    Induction CookingNo
    Range TypePro-Style
    Number of Elements/Burners7
    Burner TypeSealed
    Convection CookingYes
    Self CleaningYes
    Sabbath ModeNo
    Griddle IncludedYes
    Hot Surface IndicatorYes
    Grill IncludedNo
    Voltage120
    Frequency60
    Amp30
    Fuel TypeNatural Gas or Liquid Propane
    Number of Oven(s)Double
    Depth (in.)29.94
    Height (in.)40.5
    Width (in.)47.88
    Oven FeaturesSelf-Cleaning, Hidden Bake Element, LED Display, Proofing Mode
    Oven Cleaning MethodSelf Cleaning

    Overview

    Oven Dimensions14 - 1/2” W x 20 - 1/2” D x 15 - 1/2” H 26 - 1/2” W x 20 - 1/2” D x 15 - 1/2” H
    Gas Supply7" W.C. Natural, 11" W.C. Propane
    Light IndicatorBlue
    Handle TypeProfessional
    WarningProposition 65 Warning for California Residents
